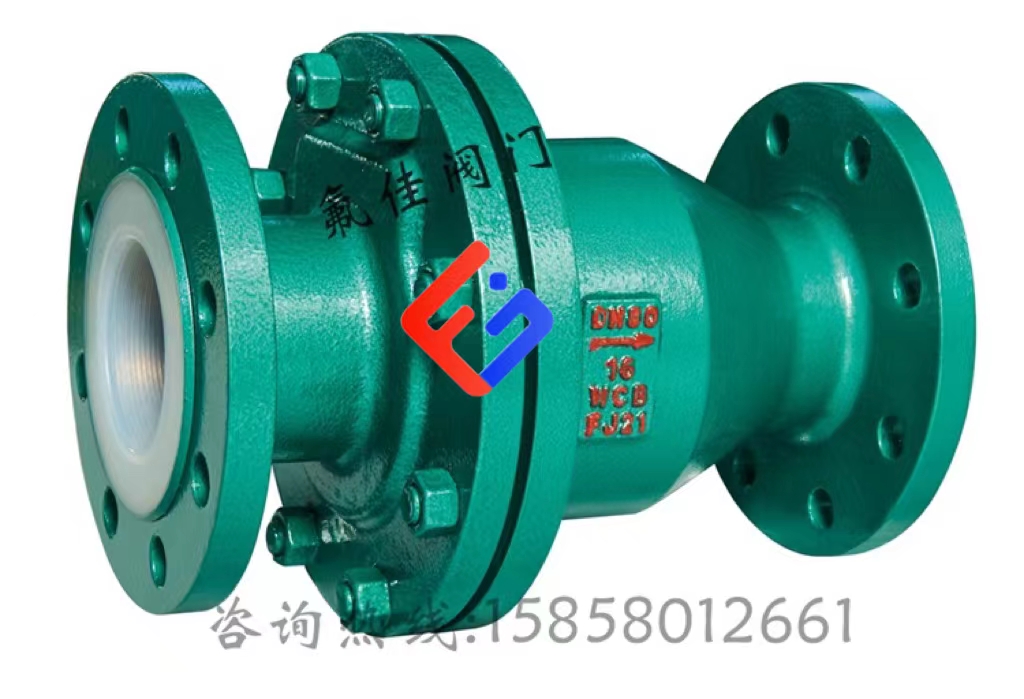

■主要零件及材料表Main parts and materials table
| 零件名稱 Part name | 材料 Material |
| 上下閥體 Upper and lower body | 鑄鋼Cast steel不銹鋼Stainless steel、內襯Lining F4 、F46 |
| 閥瓣 Disc | 鑄鋼Cast steel、不銹鋼Stainless steel、襯Lining F4 、F46 |
| 閥蓋Cover | 鑄鐵Cast iron、鑄鋼Cast steel、不銹鋼Stainless steel、內襯Lining F4 、F46 |
| 墊圈 Washer | F4、F46 |
■主要零部件材料表Main parts and material table
| 技術標準Technology standard | |
| 設計標準Design standard | GB12236 |
| 結構長度Structure length | GB12221 |
| 法蘭標準Flange Standard | JB/T79-94 |
| GB9113.1-26 | |
| 檢驗試驗Inspection test | GB/T13927 |
■主要外形尺寸和連接尺寸Main form and connection size
| 公稱通徑Nominal diameter | PN1.0（MPa）主要外形尺寸和連接尺寸Main form and connection size | 重量Weight | ||||||||
| DN | L | D | D1 | D2 | f | b | z-Φd | B | H | Kg |
| 25 | 160 | 155 | 85 | 58 | 3 | 14 | 4-Φ14 | 128 | 70 | 4.5 |
| 32 | 180 | 135 | 100 | 69 | 3 | 16 | 4-Φ18 | 140 | 80 | 6.5 |
| 40 | 200 | 145 | 110 | 78 | 3 | 16 | 4-Φ18 | 160 | 85 | 7 |
| 50 | 230 | 160 | 125 | 88 | 3 | 18 | 4-Φ18 | 178 | 90 | 10.5 |
| 65 | 290 | 180 | 145 | 108 | 3 | 18 | 4-Φ18 | 205 | 110 | 15 |
| 80 | 310 | 195 | 160 | 124 | 3 | 20 | 4-Φ18 | 305 | 130 | 20 |
| 100 | 350 | 215 | 180 | 144 | 3.5 | 20 | 8-Φ18 | 255 | 140 | 25 |
| 125 | 400 | 245 | 210 | 174 | 3.5 | 20 | 8-Φ18 | 305 | 145 | 35 |
| 150 | 480 | 280 | 240 | 199 | 4 | 22 | 8-Φ23 | 345 | 160 | 55 |
| 200 | 500 | 335 | 295 | 254 | 4 | 24 | 8-Φ23 | 415 | 180 | 75 |
| 250 | 550 | 390 | 350 | 309 | 5 | 25 | 12-Φ23 | 490 | 220 | 120 |
| 300 | 620 | 440 | 400 | 363 | 5 | 30 | 12-Φ23 | 560 | 240 | 250 |
